Kawasaki KFX50 ATV Owner's Manual 2012

Kawasaki KFX50 Owner's Manual - 2012 Edition

This factory-authorized manual provides the critical operational protocols and maintenance requirements for the 49.5 cm³ air-cooled All-Terrain Vehicle. Uptime is fundamentally tied to the precision of the oil strainer maintenance; failure to properly clean this component with specific solvent during oil changes can lead to debris accumulation and subsequent engine seizure. This document ensures that supervisors and operators can maintain the vehicle’s safety systems and mechanical integrity over its service life.

Technical Applicability & Model Identification

This documentation is specifically calibrated for the following Kawasaki All-Terrain Vehicle model:

• Model Series: KFX50 (2012)
• Engine Type: OHC single cylinder, 4-stroke, air-cooled
• Chassis Identification: Applicable to units featuring the double cradle steel frame and Belt drive torque converter (CVT) system.

Note: Owners must utilize the Frame Number and Engine Number (located on the left crankcase) to verify part compatibility and registration data.

Operational ROI & System Integrity

• Safety System Calibration: Detailed instructions for the remote engine stop switch and adjustable throttle limiter ensure a controlled learning environment for young riders.
• Drivetrain Protection: Periodic drive belt inspection protocols prevent transmission lock-ups and extend the life of the CVT components.
• Environmental Compliance: Complete data on the crankcase and exhaust emission control systems to ensure the vehicle meets EPA and CARB regulations.
• Maintenance Accuracy: Precise fluid capacities and types eliminate the risk of component failure due to incorrect lubrication.

Document Metadata

• Manufacturer: Kawasaki Heavy Industries, Ltd.
• Print Date: April 2012
• Scope: Owner's Manual (Operating, Safety, and Maintenance)
• Total Page Count: 151 Pages

Technical Depth & Factory Benchmarks

Engine performance and longevity are regulated by strict adherence to the following factory specifications:

• Idle Speed: 2,000 r/min (rpm)
• Ignition Timing: 13° BTDC @ 2,000 r/min (rpm)
• Valve Clearance: Periodic inspection required (Intake/Exhaust) to prevent performance loss or valve seat damage.
• Spark Plug Gap: 0.6 – 0.7 mm (0.024 – 0.028 in.) using NGK CR7HSA.
• Compression Ratio: 10.8 : 1

System Navigation & Safety Infrastructure

This manual utilizes a high-level organizational structure to facilitate rapid technical retrieval:

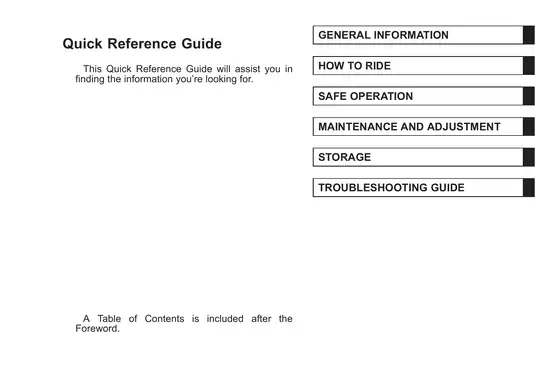

• Quick Reference Guide: Direct access to General Information, How to Ride, and Troubleshooting.
• Location of Parts: Schematic-style maps of handlebar switches, fuel taps, and engine components.
• Location of Labels: Visual guide to all 9 critical safety and emission certification labels.
• Maintenance Record: Dedicated logging sections for tracking service history and dealer interventions.

Table of Contents

• Specifications: Performance, Dimensions, Engine, and Drivetrain data.
• Serial Number Locations: Frame and Engine identification.
• General Information: Controls, Fuel, Ignition, and Remote Stop Switch.
• Break-In: Critical 20-hour engine conditioning protocol.
• How to Ride: Daily Safety Checks and Starting Procedures.
• Safe Operation: Age recommendations and terrain-specific riding techniques.
• Maintenance and Adjustment: Periodic Maintenance Chart, Lubrication, and Tuning.
• Storage and Transporting: Long-term preservation and level-position hauling.
• Troubleshooting Guide: Diagnostic steps for starting and power issues.

Operational Limits & Specifications
