1988–1994 Honda TRX300, TRX300FW FourTrax ATV Service Manual

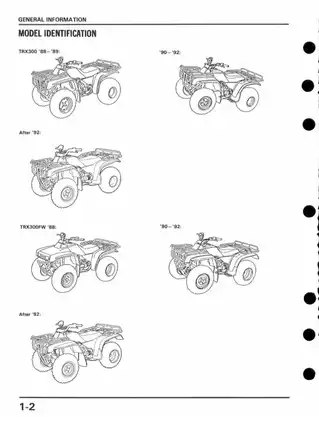

This Honda service manual covers the 1988–1994 TRX300 and TRX300FW FourTrax ATVs. The August 1992 issue organizes maintenance, mechanical repair, electrical diagnosis and reference information into 23 sections.

PDF Search, Bookmarks and Diagram Detail

Navigation and wiring detail: PDF text search is not available. Embedded bookmarks provide access to the contents and individual sections. Small wiring labels require enlargement, and some wire-color codes remain blurred when zoomed in.

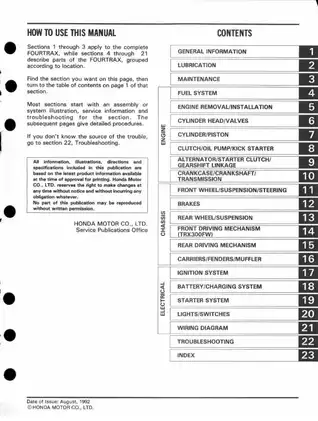

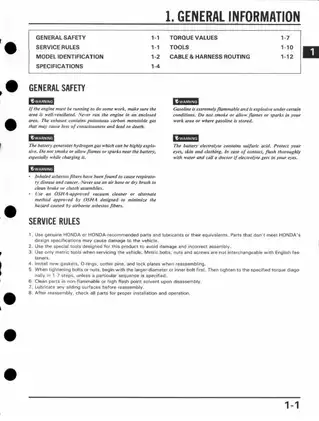

Supplied as one printable, English-language, 361-page PDF. The total includes the original cover, safety notice, manual-use/contents page and nine blank memo pages.

Engine, Shaft Drive and Electrical Service

These are selected coverage highlights, rather than a complete contents list. Other topics include carrier and fender removal, along with spark arrester cleaning.

• Engine repair: Engine removal and installation, cylinder-head and valve service, piston inspection, crankshaft and balancer work, and crankcase disassembly.

• Clutch and transmission: Centrifugal and change-clutch overhaul, oil-pump inspection, kick-starter service, gearshift-linkage repair and internal transmission procedures.

• Fuel system: Vacuum-piston carburetor disassembly, diaphragm and jet inspection, pilot-screw adjustment, troubleshooting and high-altitude settings.

• Shaft drive: TRX300FW front differential and front gear-case service, plus rear axle, drive-shaft and rear final-drive repair.

• Brakes and chassis: Steering and suspension service, drum-brake overhaul, master-cylinder inspection, wheel-cylinder repair and hydraulic brake bleeding.

• Electrical diagnosis: DC-CDI ignition tests, charging-system checks, starter-motor repair, switch inspection, wiring diagrams and troubleshooting charts.

The manual suits readers with workshop experience and the specified tools; Honda recommends dealer service for the wheel and steering items marked accordingly in its maintenance schedules.

Engine Inspection and Internal Repair

Step-by-step procedures cover valve-guide replacement, valve-seat refacing, piston and ring installation, and crankcase separation and reassembly. Camshaft specifications, cylinder measurements and wear limits support inspection before components are reused.

Cylinder-head, valve, camshaft and cam-chain tensioner service can be performed with the engine installed in the frame. Crankshaft/balancer, transmission and output-gear servicing require engine removal.

Valve-seat cutting drawings, timing-mark illustrations, lubrication-system diagrams and exploded component views accompany the procedures. Component-specific torque tables cover internal engine parts, chassis fasteners and output-gear assemblies.

Carburetor Service and Adjustment

The fuel-system chapter goes beyond routine tuning, covering the choke valve, primer diaphragm, vacuum piston, float valve and jets. Float-level inspection uses gauge 07401-0010000; the float itself is not adjustable.

Pilot-screw settings and high-altitude jetting receive separate procedures. Overtightening the pilot screw can damage its seat, a specific caution included in the carburetor instructions.

Differential and Final-Drive Setup

Front differential service for the TRX300FW includes clutch-pack inspection and slip-torque testing. Backlash measurements and gear-tooth contact checks explain the selection of differential and pinion spacers.

Rear final-drive coverage includes axle removal, pinion service, bearing and oil-seal work, and drive-shaft installation. These setup checks help assess gear engagement after bearing, gear-set or case replacement, rather than treating reassembly as a simple parts swap.

Brake Sealing, Steering and Suspension

Brake coverage distinguishes the hydraulic front drums from the cable-operated rear drum, with brake-shoe wear limits, master-cylinder and wheel-cylinder inspection, and waterproof-seal installation details.

The front-brake seal procedure warns that the TRX300FW brake drum can warp or be damaged if it is inadequately supported during installation. Steering-shaft bearings, tie-rods, ball joints, shock absorbers and swingarm pivot bearings are also covered.

Before a major teardown, use appropriate supports for heavy components and follow the manual’s brake-service and workshop safety precautions.

Fault Finding and Electrical References

Electrical sections map wire-harness routing, charging-system amperage and ignition timing. Separate checks cover the ignition coil, pulse generator, regulator/rectifier, starter relay, neutral and reverse switches, and oil-temperature warning system. Alternator-stator replacement and flywheel/starter-clutch procedures appear in the mechanical sections.

Wiring diagrams and cable-routing drawings support circuit tracing. Troubleshooting charts connect hard starting, power loss and poor running with fuel, ignition and mechanical checks, helping narrow the fault before selecting a repair procedure.

Selected Compression and Cylinder-Wear Data

The compression-test section specifies 1,250–1,450 kPa (178–206 psi) for a warmed engine with the throttle fully open during starter cranking. Its diagnostic notes distinguish low compression associated with valve leakage or cylinder/ring wear from high readings associated with carbon buildup.

For cylinder and piston inspection, standard cylinder-to-piston clearance is 0.015–0.050 mm, with a service limit of 0.10 mm.
