Kawasaki Ninja 250R (EX250-J) 2008–2009 Service Manual

This Kawasaki service manual covers the 2008–2009 Ninja 250R (EX250-J), with EX250J8F identified for the U.S./Canada configuration.

Searchable Service Text and PDF Bookmarks

Search, navigation, and wiring detail: The main service text is searchable, with embedded bookmarks for chapters and individual topics. Labels within regional wiring diagrams and many routing drawings are outside the searchable text layer. Small wire-color codes and switch-connection tables require zooming.

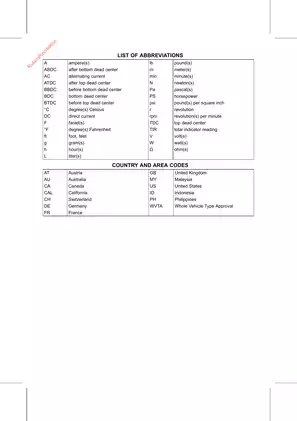

One printable, 420-page PDF in English. The total includes six preliminary pages, six blank pages, one placeholder page, and the 41-page appendix.

Engine Overhaul, Carburetor Setup, and Electrical Diagnosis

The following topics are selected examples of the coverage, rather than a complete contents list. Other subjects include fairing removal and installation, along with headlight aiming.

• Engine top-end repair: Cylinder-head and camshaft removal, cam-chain timing, tensioner service, compression testing, valve-clearance adjustment, shim selection, valve-guide and seat repair, and piston inspection.

• Keihin CVK30 carburetors: Throttle and choke cable service, vacuum synchronization, pilot-screw adjustment, fuel-level and float-height checks, removal, separation, cleaning, inspection, and reassembly.

• Clutch and lower engine: Clutch-pack service, lubrication-system testing, engine removal, crankcase splitting, crankshaft and connecting-rod inspection, bearing selection, starter-clutch service, balancer work, and transmission overhaul.

• Cooling system: Pressure testing, coolant replacement and bleeding, water-pump removal and inspection, radiator-cap testing, thermostat inspection, and radiator service.

• Chassis and brakes: Wheel and tire service, chain and sprocket inspection, caliper and master-cylinder repair, brake bleeding, fork overhaul, Uni-Trak linkage work, and steering-bearing service.

• Electrical diagnosis: Battery checks, alternator and regulator/rectifier testing, ignition peak-voltage tests, starter inspection, lighting and fan-circuit diagnosis, meter checks, switch tests, and fuse inspection.

• Service references: Component-specific torque and locking-agent tables, capacities, clearances, wear limits, electrical test specifications, special-tool references, exploded views, flow charts, regional wiring diagrams, and troubleshooting guidance.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical work, tool use, and workshop procedures. Work beyond the owner’s experience is assigned to qualified mechanics.

Engine Repair and Internal Inspection

The top-end chapters provide step-by-step procedures for cylinder-head removal, camshaft and sprocket installation, and valve-guide replacement. Valve-seat cutting and lapping, cylinder measurement, piston-ring inspection, and boring or honing criteria extend the coverage beyond routine maintenance.

A compression-diagnosis table connects abnormal readings with valve seating, piston and ring condition, head-gasket leakage, and cylinder-head distortion. This links test results to the mechanical inspections needed to investigate the fault.

Carburetor Setup and Fuel-System Service

The dual Keihin CVK30 carburetors have separate left/right pilot-screw baselines, jetting specifications, synchronization data, and fuel-level references. The manual distinguishes measured service fuel level from float height and includes checks after carburetor installation.

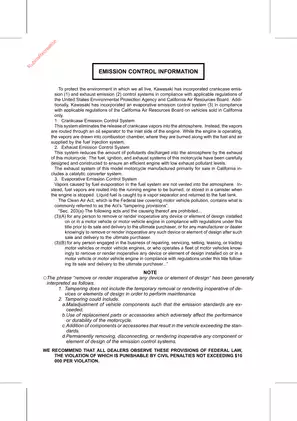

Related coverage includes the air-cleaner housing, fuel tank, vacuum-operated fuel tap, and California evaporative-emission components.

Clutch, Lubrication, and Transmission Work

Clutch coverage includes the cable, cover, release mechanism, hub, housing, friction plates, steel plates, and springs, with wear and warp inspections. Gear-marking and color-selection tables match replacement clutch housings to the crankshaft primary gear.

Lower-engine work includes the oil screen, bypass and relief valves, oil-pump disassembly, and oil-pressure measurement. Crankshaft and connecting-rod sections provide bearing-insert selection and clearance checks; starter-clutch and balancer service are also covered.

Transmission procedures extend through shaft disassembly and reassembly, shift-drum and fork inspection, gear-backlash measurement, and gear-dog damage checks.

Cooling-System Testing and Component Service

The cooling chapter combines leak-pressure testing with radiator-cap and thermostat inspections. Water-pump coverage includes removal, installation, and impeller inspection; a damaged impeller calls for replacement of the pump unit.

The Coolant Flow Chart explains circulation through the engine and radiator. Coolant deterioration checks, flushing, hose installation, and system bleeding support maintenance as well as overheating diagnosis.

Wheels, Brakes, Suspension, and Steering

Wheel coverage includes rim and axle inspection, balancing, tubeless-tire service, hub bearings, and the speedometer drive. Final-drive work extends to chain replacement, sprocket inspection, rear-wheel coupling bearings, and coupling dampers.

Brake procedures cover pad replacement, caliper disassembly and seal replacement, master-cylinder repair, disc inspection, hose replacement, fluid changes, and bleeding. Final checks address brake drag, leakage, and braking power.

Front-fork instructions cover disassembly, oil replacement, seals, bushings, and spring inspection. Rear suspension coverage includes shock removal and preload adjustment, swingarm bearings, and rocker-arm and tie-rod bushings and sleeves. Steering-stem procedures include bearing replacement, lubrication, and adjustment.

Electrical Circuits and Regional Differences

Separate wiring diagrams cover United States/Canada/Australia and Indonesia configurations. System drawings address ignition, starting, headlights, turn signals, the radiator fan, tachometer, water-temperature warning, and fuel gauge.

The Ignition System Troubleshooting chart and appendix troubleshooting guide support fault investigation across starting, running, charging, shifting, handling, and braking complaints. Cable, wire, and hose routing plates include California evaporative-system routing and Australia-model carburetor cooling hoses.

The exhaust-system chart identifies EX250J8FL as the California variant. It distinguishes catalyst-equipped silencers for U.S., California, Canada, Indonesia, and Malaysia models from non-catalyst silencers for Australia and Philippines versions. Australia-specific final-drive gearing and coolant-filter routing help distinguish regional service requirements.

Special Tools and Illustrated References

Carburetor tool references include the KEK-55-5 Vacuum Gauge 57001-1369, Fuel Level Gauge 57001-1017, and Pilot Screw Adjuster 57001-1239.

Other callouts include Compression Gauge 57001-221 with adapter 57001-1317, Hand Tester 57001-1394, and Fork Oil Level Gauge 57001-1290. The Engine Oil Flow Chart and Valve Seat Repair flowchart supplement the component exploded views and circuit drawings.

Camshaft and Carburetor Damage Risks

The manual’s cautions address tensioner and chain damage from partial loosening and retightening, valve damage from crankshaft rotation with the tensioner removed, and camshaft seizure caused by misplaced caps. Compressed air applied to an assembled carburetor can crush floats or damage the vacuum-piston diaphragm.

Follow the manual’s safety warnings: work on gasoline components in a ventilated, spark-free area; complete the specified brake and cooling-system bleeding and leak checks; isolate electrical power where required; and disconnect the radiator-fan connector before working near the fan because it can operate with the ignition switched off.

Selected Oil-Pressure and Thermostat Test Data

Lubrication checks: The standard oil-pressure range is 98–147 kPa at 4,000 rpm with the oil at 90°C. The lubrication chapter relates abnormal readings to oil-pump, relief-valve, and oil-passage checks.

Thermostat inspection: The specified valve-opening range is 63.5–66.5°C. The cooling chapter also provides radiator-cap relief-pressure specifications and inspection criteria.
