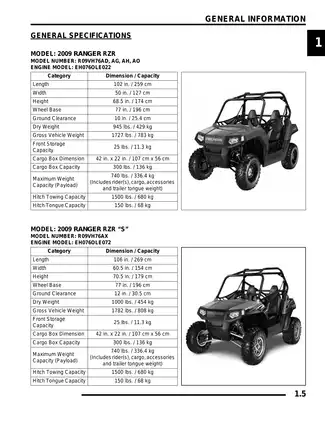

Polaris Models Covered & Key Technical Specifications

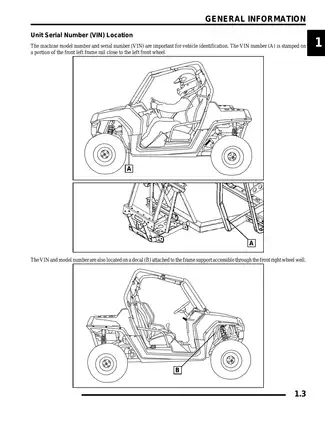

Models & Model Codes: Ranger RZR (R09VH76AD, R09VH76AG, R09VH76AH, R09VH76AO / engine EH076OLE022), Ranger RZR S (R09VH76AX / engine EH076OLE072)

Model Year: 2009


  • Engine: Polaris Domestic Twin Cylinder, Liquid Cooled, 4-Stroke

  • Displacement: 760 cc (760cc HO for RZR S)

  • Compression Ratio: 9.78:1 (RZR), 11:1 (RZR S)

  • Fuel System: Bosch Electronic Fuel Injection

  • Transmission: Polaris Automatic PVT (H / L / N / R / P)

  • Coolant Capacity: 4.8 qts. / 4.5 liters

  • Oil Capacity: 2 qts. / 1.9 liters

  • Brakes: Hydraulic Disc Brakes (Front / Rear)

Polaris Manual Features & Selected Content Preview

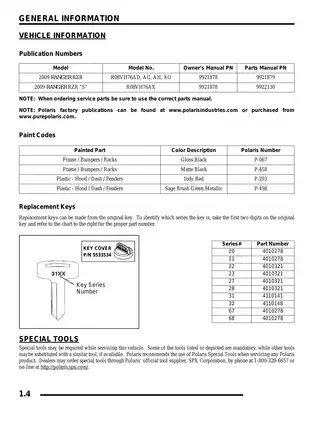

This Polaris service manual (P/N 9921883) covers the 2009 Ranger RZR and Ranger RZR S, including the standard and HO engine configurations and model-specific drivetrain and suspension service.

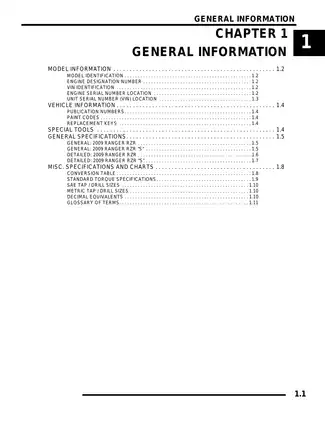

Searchable Text, Bookmarks, and Wiring Sheets

Search and wiring detail: The main text is searchable, and embedded bookmarks open chapters and subsections. Many diagram labels and parts of the instrument-cluster troubleshooting charts are not searchable. Small connector labels and wire codes on the full wiring sheets are readable when zoomed in, although some circuit lines are faint.

One printable English PDF contains 332 pages: 330 chapter pages and two wiring-diagram sheets. The total includes three notes pages and one maintenance log.


Engine Overhaul, EFI Diagnosis, and Chassis Service

These are selected topics from the manual. It also includes spark arrestor cleaning and brake noise troubleshooting.

  • Engine overhaul: Step-by-step engine removal, teardown, inspection, and reassembly, including crankcase and cylinder-head work, piston and valve inspection, and cam-gear alignment.
  • EFI and sensors: Bosch EFI troubleshooting with blink codes, fuel-pressure and injector tests, crankshaft position sensor checks, and throttle position sensor calibration.
  • PVT and transmission: Drive and driven clutch service, belt troubleshooting, transfer-case and shift-housing disassembly, and internal gear inspection and reassembly.
  • Final drive: Centralized Hilliard AWD diagnosis and front gearcase overhaul, plus propshaft U-joint replacement, CV joint and boot service, and wheel-bearing replacement.
  • Suspension and steering: Standard RZR shock replacement, RZR S FOX Podium X shock rebuilding, A-arm and ball-joint service, and steering-shaft bearing replacement.
  • Hydraulic brakes: Front and rear caliper service, pad replacement, disc inspection, master-cylinder removal and installation, and brake bleeding.
  • Electrical systems: Instrument-cluster diagnostics, charging and starting test flowcharts, fan circuits, relay and fuse checks, and wiring diagrams.

The manual suits experienced technicians equipped for engine and drivetrain repairs. Polaris specifies that PVT maintenance and repair should be performed by a certified Polaris Master Service Dealer technician.

Engine Overhaul and Severe-Use Maintenance

The maintenance charts distinguish normal service from severe use in mud, water, or under heavy loads. Fluid service covers PS-4 PLUS 2W-50 engine oil, coolant, the front and rear gearcases, and the transmission main gearcase and transfer case.

The engine chapter pairs valve-seat reconditioning, piston-to-cylinder clearance checks, and crankshaft runout inspection with component tolerances and torque specifications. Crankcase and cylinder-head exploded views, coolant-flow diagrams, and timing illustrations support the procedures. The general information chapter includes SAE and metric tap-and-drill charts.

Cylinder-head installation uses a multistage tightening sequence. The engine chapter also warns that skipping oil-pump priming after reassembly can damage internal components on startup.

Bosch EFI and Electrical Diagnosis

The intake temperature and barometric pressure sensor test calls for dealer-only Polaris Digital Wrench software. Throttle position sensor adjustment uses a dedicated adapter and voltage regulator. The injector section warns that pulling apart a bonded Bosch connector can damage the injector or harness.

Electrical breakout diagrams isolate circuits such as starter power, AWD, and cooling fan control. The starting-system section also covers starter Bendix inspection.

Clutch Variants and AWD Diagnosis

Clutch diagrams distinguish the standard RZR non-braking design from the RZR S engine-braking system (EBS). A separate section covers the late-build RZR driven clutch, and clutch charts identify springs and shift weights by application.

The Hilliard AWD diagnostic procedure helps distinguish an electrical engagement fault from internal wear by pairing coil and circuit checks with armature plate and roller inspections. Transmission exploded views show the shift housing and transfer case.

The rear gearcase chapter covers bearings and seals. It calls for replacing the complete assembly when gear or housing damage requires replacement, and it does not provide ring-and-pinion shimming specifications.

FOX Podium X Shock Rebuilds

The RZR S piggyback shock procedures cover seal replacement, bleeding, internal floating piston positioning, and nitrogen charging. The chapter includes an exploded view and separate front and rear valving data.

Pressurized fuel, charged shocks, and heavy powertrain assemblies require the manual’s safety procedures and appropriate workshop equipment.

A Preview of Engine and Sensor Specifications

For both engines, the cylinder-head table lists camshaft oil clearance at 0.00276 ± 0.00079 in. (0.07 ± 0.02 mm). The RZR S 800 HO cylinder-compression reference is 165–185 psi, with readings varying according to cranking speed.

The crankshaft position sensor test specifies 560 Ω ±10% at 68°F (20°C).
