Honda VTR 250 (1997–2009) Factory Workshop Manual

This Honda factory workshop manual covers the carbureted VTR 250 (MC33) with the MC15E engine. Check the fuel system and the frame and engine serial numbers above when selecting the manual for your bike.

Reading and Navigating the PDF

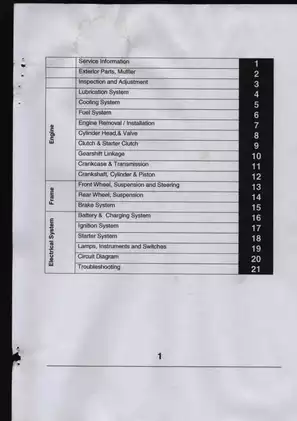

Text search and diagram detail: Use the contents page to find chapters. The PDF has no text search or embedded bookmarks. Rotate and enlarge the full wiring diagram to inspect the connector labels. Some small wire color codes remain hard to read at higher zoom.

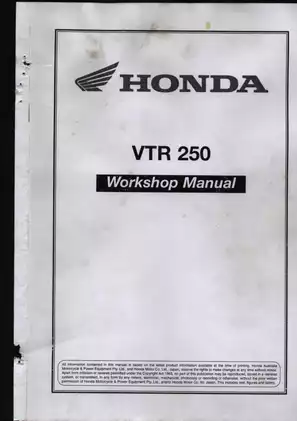

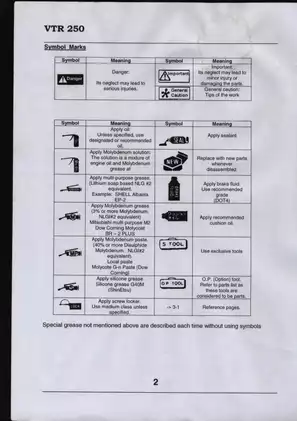

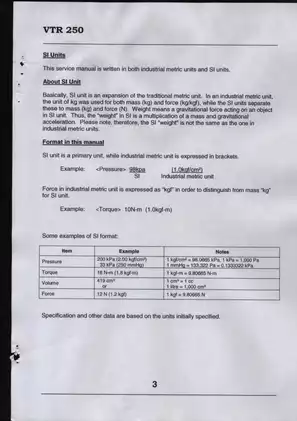

The ZIP download contains one printable 329-page PDF, including the cover and five introductory pages.

Engine Overhaul, Chassis Service, and Electrical Tests

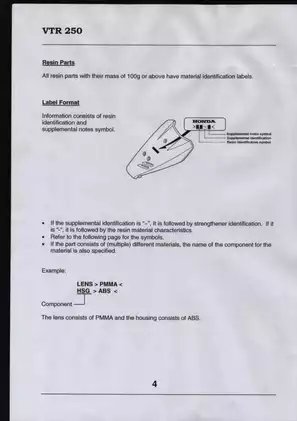

These selected workshop procedures show the range of jobs covered. The manual also covers headlamp aim and identification of body-panel plastics.

• Engine repair: Step-by-step instructions cover engine removal and installation, cylinder-head disassembly, camshaft timing, and inspection of the crankshaft, cylinders, and pistons.

• Clutch and transmission: Service the clutch, starter clutch, and gearshift linkage. The transmission chapter covers crankcase separation, internal inspection, and reassembly.

• Carburetors: Separate and service the carburetor pair, check float level, synchronize the carburetors, and adjust the pilot screws using the idle-drop method.

• Cooling and lubrication: Check radiator-cap and system pressure, test the thermostat, bleed the cooling system, and inspect the oil pump.

• Chassis and brakes: Overhaul the front forks, replace steering-head and swingarm bearings, rebuild front and rear brake calipers and master cylinders, and bleed the brakes.

• Electrical diagnosis: Trace charging faults, check ignition peak voltage, and diagnose and repair the starter motor and its interlock circuit.

• Routine service: Use the scheduled inspection tables alongside procedures for exterior panel and muffler removal, drive-chain replacement, and master-link staking.

The manual is suited to technicians and experienced home mechanics who are comfortable using a micrometer for wear checks and a multimeter for electrical diagnosis.

Cylinder Heads and Crankshaft Bearings

The front camshaft and cylinder head can be serviced with the engine in the frame. The rear camshaft and cylinder head require engine removal. The Valve Operation chart shows the relationship between front and rear cylinder timing. Top-end procedures also cover valve-guide replacement, valve-seat reconditioning, rocker-arm inspection, and camshaft journal clearance. Localized heating during valve-guide work can warp the cylinder head.

The crankcase chapter covers the shift drum, shift forks, gear bushings, and shaft bearings. Color-coded tables match main and connecting-rod bearings to the relevant bore and journal codes. The front and rear rod bearings have distinct markings. Mixing rods, caps, or bearing shells can alter oil clearance and damage the crankshaft.

Carburetors, Water Pump, and Rear Suspension

Fuel-system coverage includes the vacuum-operated fuel auto cock, air-cut valves, vacuum pistons, diaphragms, and choke valves. The carburetor assembly illustrations distinguish the front and rear jet needles.

The water-pump section shows how to identify a mechanical-seal leak and covers replacement of the complete pump assembly. Wheel service includes bearing replacement, axle and rim runout checks, and static balancing. Rear shock coverage is limited to removal, inspection, and replacement.

Wiring Diagrams and Fault Tracing

The full-bike Wiring Diagram is on PDF p. 325. Separate Battery & Charging System, Ignition System, and Starting System schematics show the individual circuits. The Routing illustrations show cable, hose, and harness paths and help locate connectors.

Charging tests help distinguish current leakage from an alternator-coil or regulator/rectifier fault. Starter diagnostics trace relay input and ground paths through the clutch diode and the neutral, clutch, and side-stand switches. The electrical chapters also cover oil-pressure and coolant-temperature warning circuits, cooling-fan switching, and switch continuity. Engine troubleshooting flowcharts address hard starting, unstable idle, mid- and high-rpm running faults, and loss of power or acceleration.

Torque Tables and Special Tools

The manual lists component-specific torque settings, assembly clearances, fluid capacities, and wear limits. Tool references identify camshaft lifter 07GMG-KV00100 for valve-clearance inspection and peak-voltage adapter 07HGJ-0020100 for ignition testing.

Follow the manual’s safety precautions when working around gasoline vapor, hot coolant, brake fluid, and electrical circuits.

Valve Clearance and Pressure Test Examples

The standard valve clearances are 0.17 ± 0.03 mm for intake and 0.22 ± 0.03 mm for exhaust. The check applies with the engine below 35°C and the cylinder being checked at top dead center.

The standard engine oil pressure at the oil-pressure switch port is 490–588 kPa at 5,000 rpm with the oil at 80°C.

The radiator cap valve opening pressure is 108–137 kPa. The cap test also specifies a six-second pressure hold.
